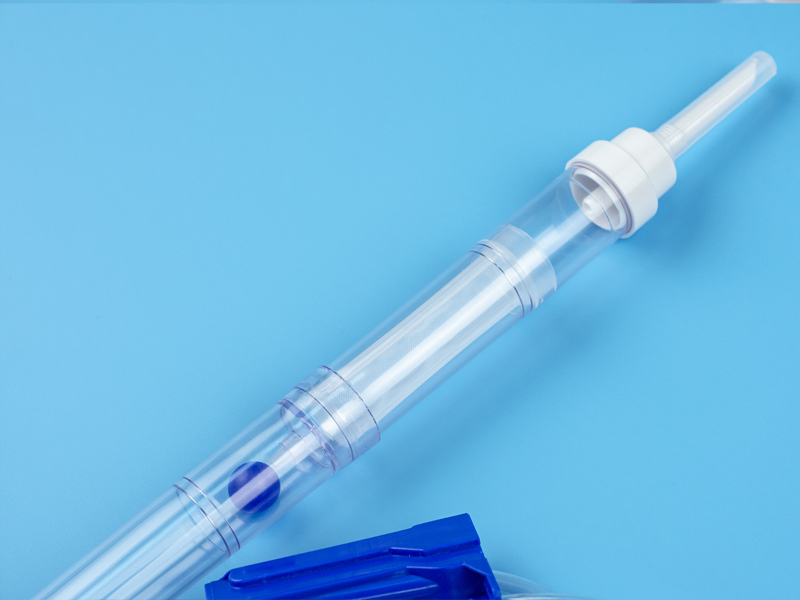

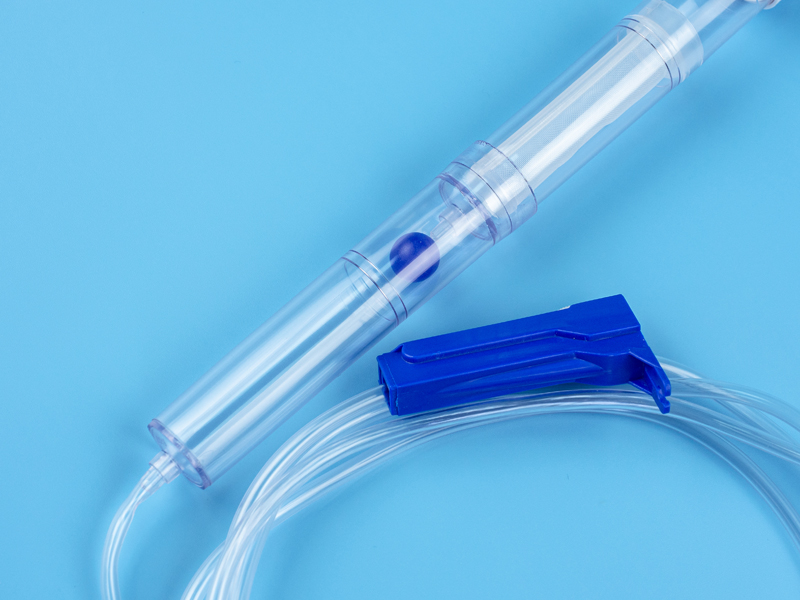

Disposable Blood Transfusion Set (Double Chamber Type) (DEHP Free）

Main Material: Medical grade PVC， Medical grade ABS

SIZE:TKBT-F03

Intended Use

The product is used to blood transfusion.Double-chamber design.

Characteristic:

• With double chamber
• Flexible drip chamber
• Roller clamp, one/two spikes
• Y-injection port
• Slip or lock adapter
• Air-inlet device
• For gravity use
• Sterile

Structure Properties Products

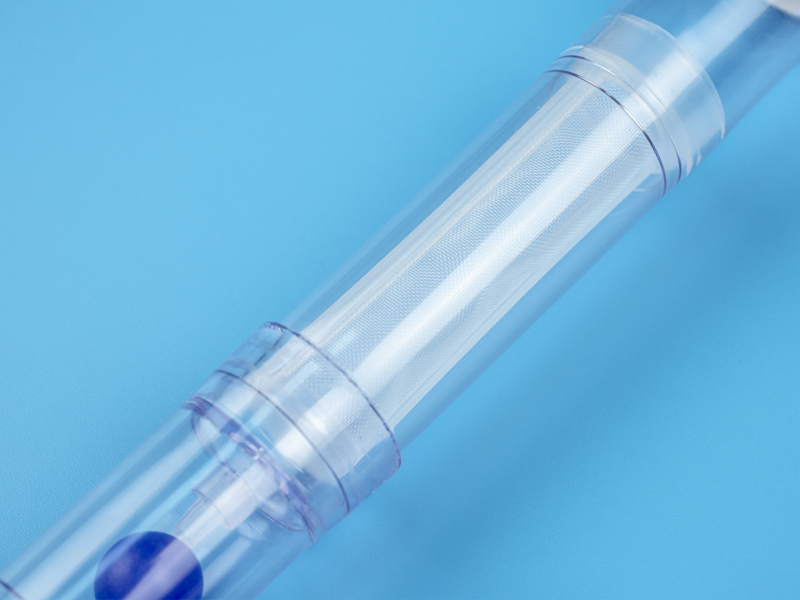

• Double-chamber design: ln the process of blood transfusion, in order to avoid the fiter screen from being allected by blood clot blockage, the perptheralwall of the lower chamiber can be pinched back and forth, so that the pregsure of the lower chamber can act upward and the blood clot accumulated onthe flter net can be evenly separated, so that the filter net is unblocked, so as to ensure a stable blood transfusion flow.Safe transfusion design: Blood filters can remove blood clots more than 80% Relable regulator design: the adusten! stroke is greater than 30mm, can adust the ligud tow from zero to the maximum, the adjustment tank wallisthick. not easy to defommation and accurate reculation.Good usability design: The drop chamber is transparent and elastic, and t is equpped with a ftoating ballthat can ftoat on the blood level.During theransfusion process, the positon o the iterlace betveen blood and ar can be cleary observed. which is corvenient lor medical personnel to identfynuraing and effoctiwely reduce the difficulty of nursing.This product does not contain DEHPDEHP Free), has better infusion safely. suitable for all knds of people.to avoid the phthalic acid infusionset on pre-adolescent male, pregnant women and other groups of reproductive toxicity.

Notes

Product Conformance

• Conform to ISO 1135-4 etc..

Quality Assurance

• Manufacturing process is in compliance with ISO 13485 and ISO 9001 Quality System.
